Solutions for Robotics Application

Robotic Arm is one of the key equipment on behalf of industrial 4.0 factory automation, making good use of it will only vastly increase the production capacity and reduce the risk of industrial safety accidents. In order to meet higher automation requirements, ChainWe Machinery continues to develop Robot-related systems that is suitable for wholesale and retail, transportation and warehousing, logistics, and various types of manufacturing industries.

The Seventh Axis Linear Module

The Seventh-Axis Linear Module of the Robotic Arm endows the original six-axis Robot with the seventh-axis lateral movement function and increases the working range of the Robot, making it more flexible to integrate with the production line, which acquires more possibility when designing automatic processes, and also the potential to save the cost for another robotic arm. It can be docked at multiple points in a straight line, strengthen the processes of handling, assembly and welding, loading and unloading etc.
Noticeable Features:
1.Easy maintenance.
2.Two existing modules
a.Aluminum extrusion modules, lower cost and faster in delivery.
b.Steel structure modules, higher accuracy and rigidity.
3.There are various load modules, which can be operated with various mechanical arms.
4.Wide range of applicability, can be integrated with various conveying lines.
5.Compatible with all brands of robotic arms on the market.

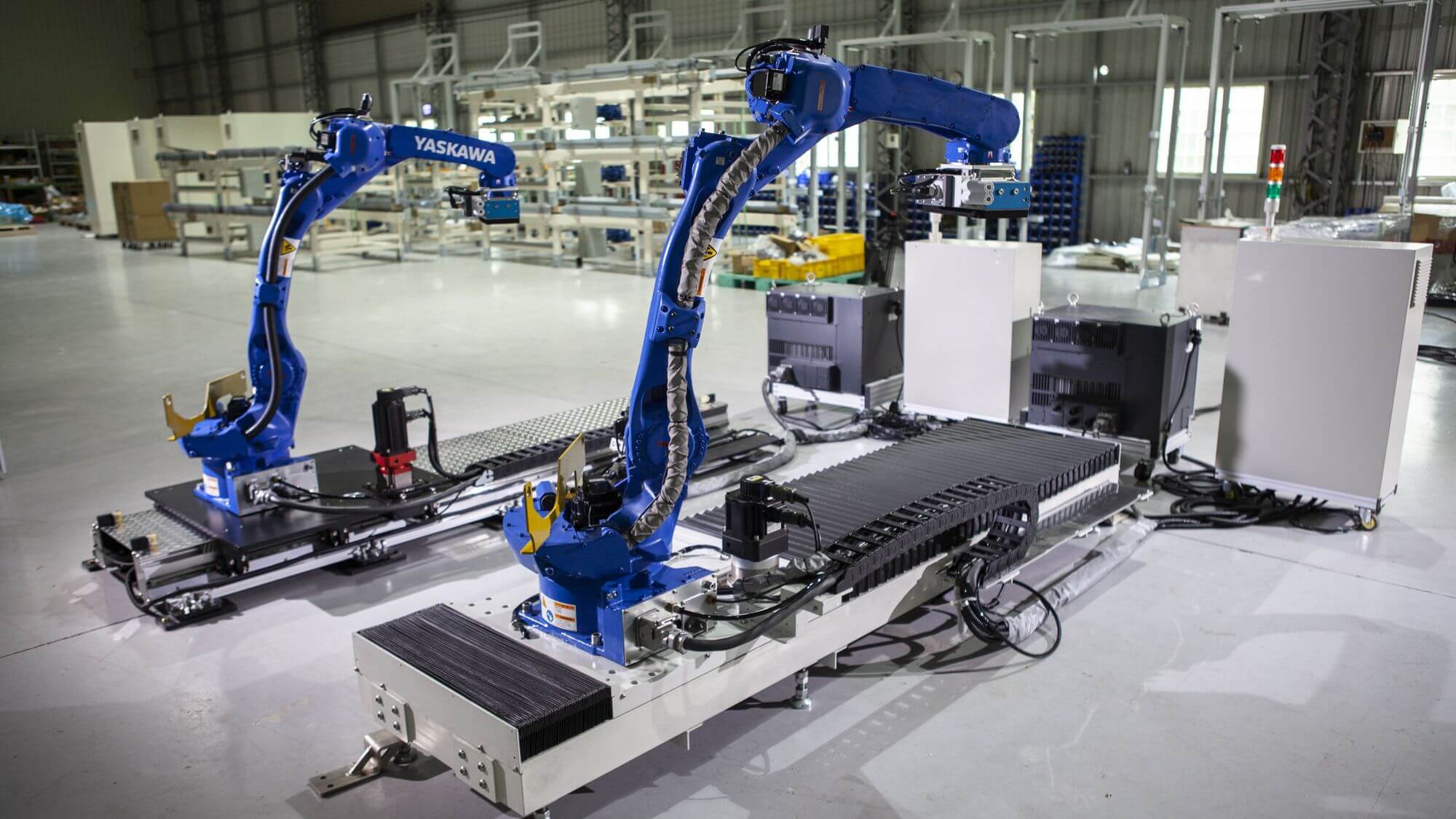

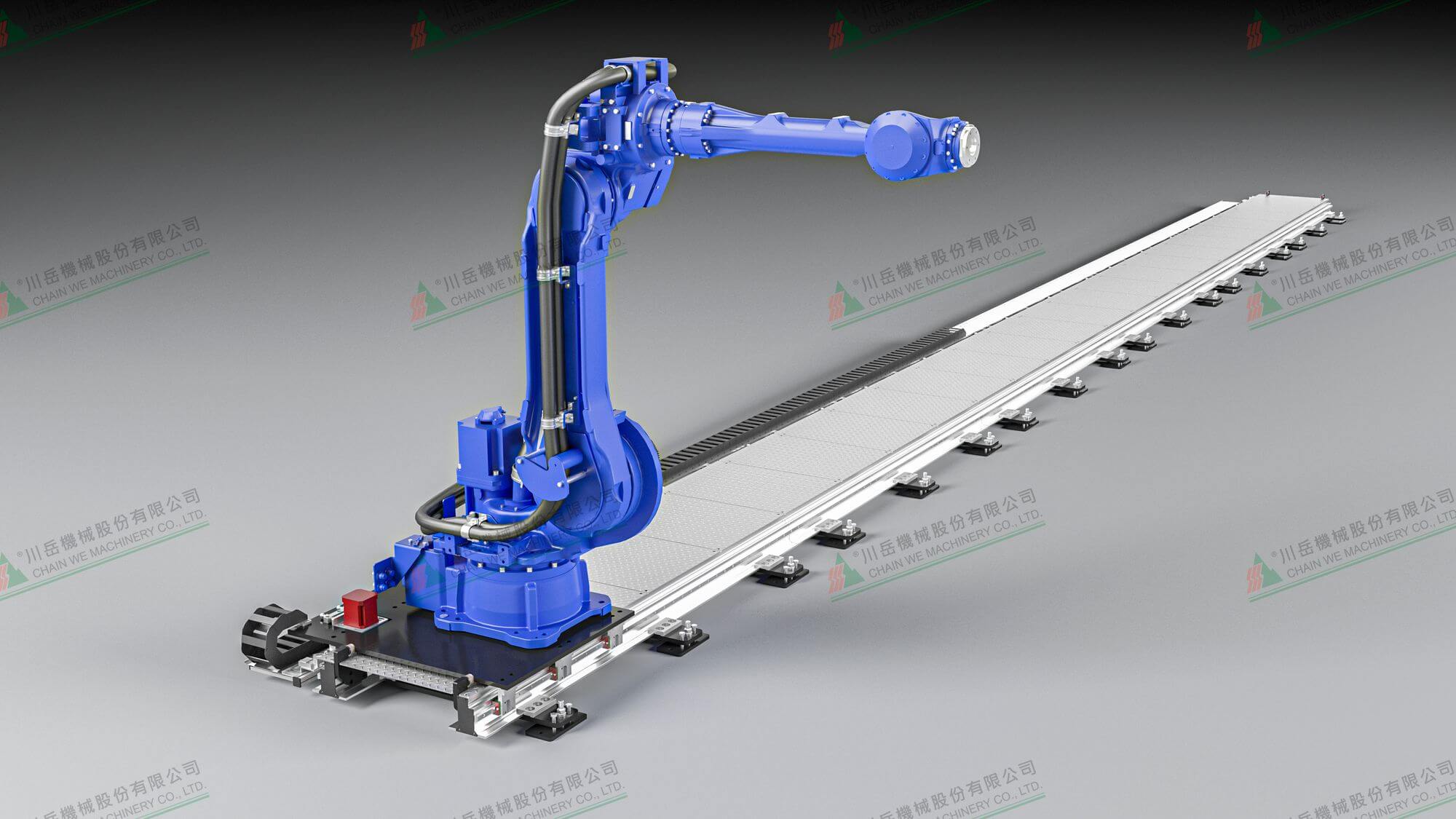

The Seventh-Axis Linear Module(Aluminum Extrusion) with Robotic Arm

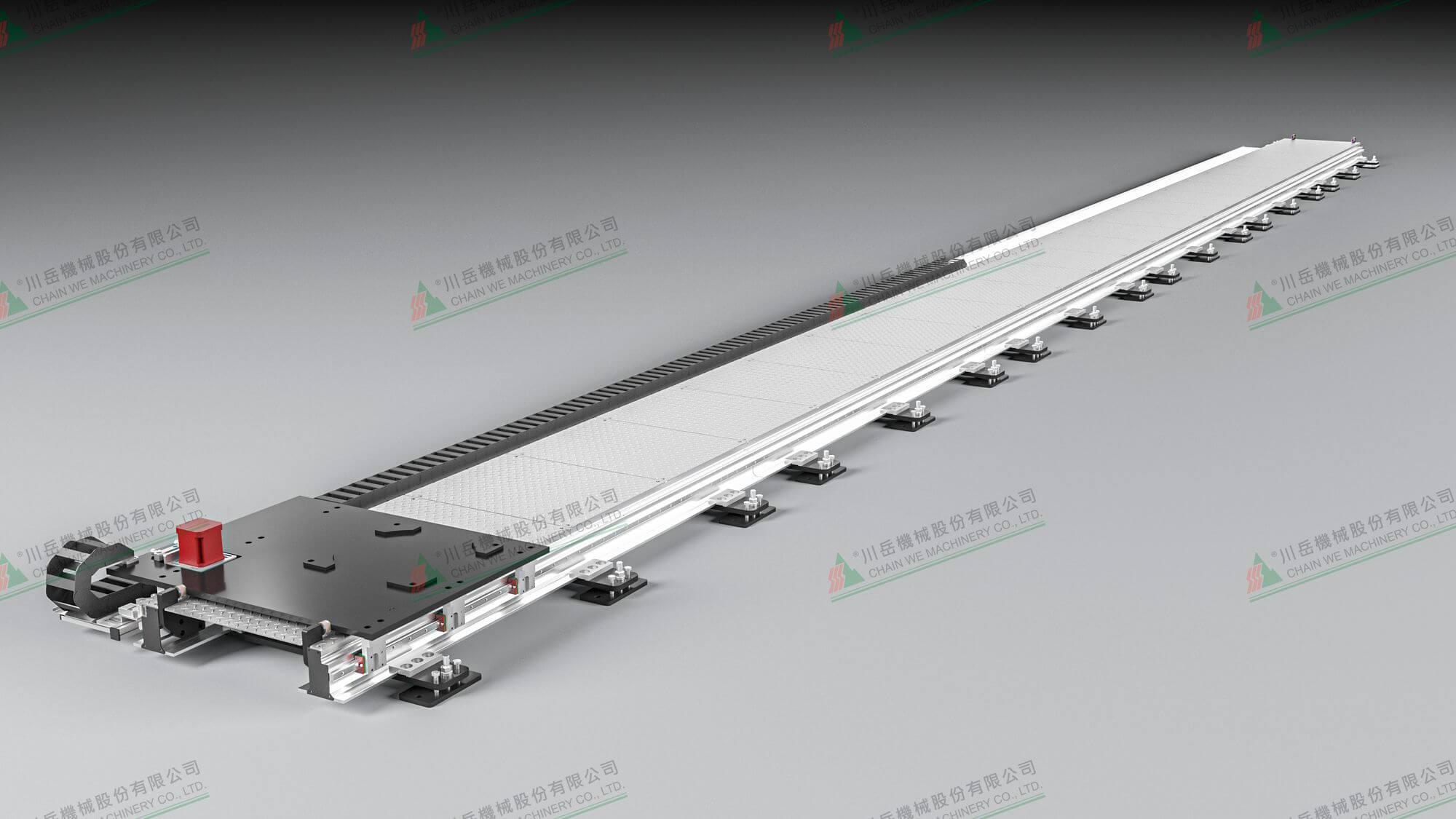

                                    The Seventh-Axis Linear Module(Aluminum Extrusion)

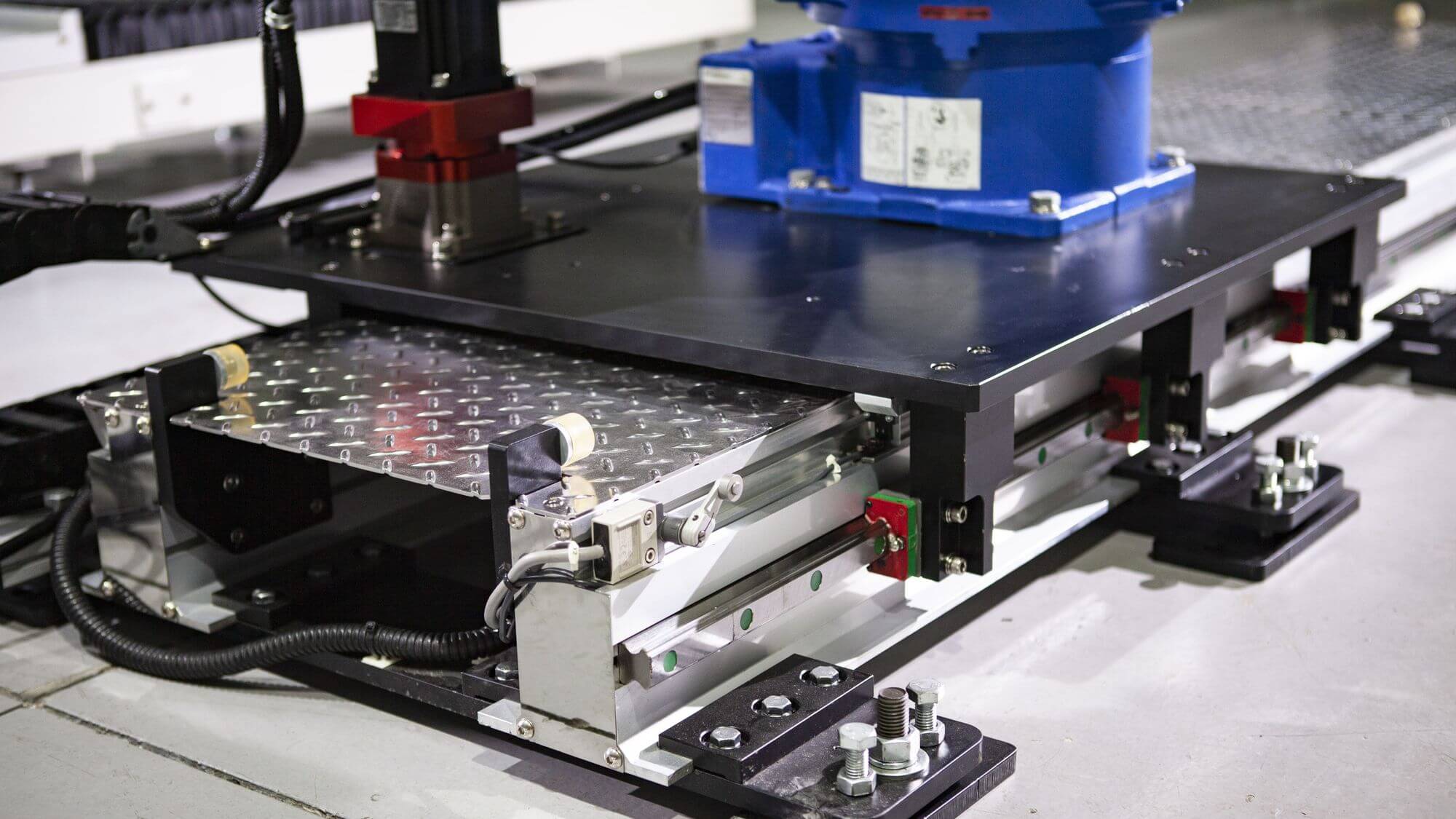

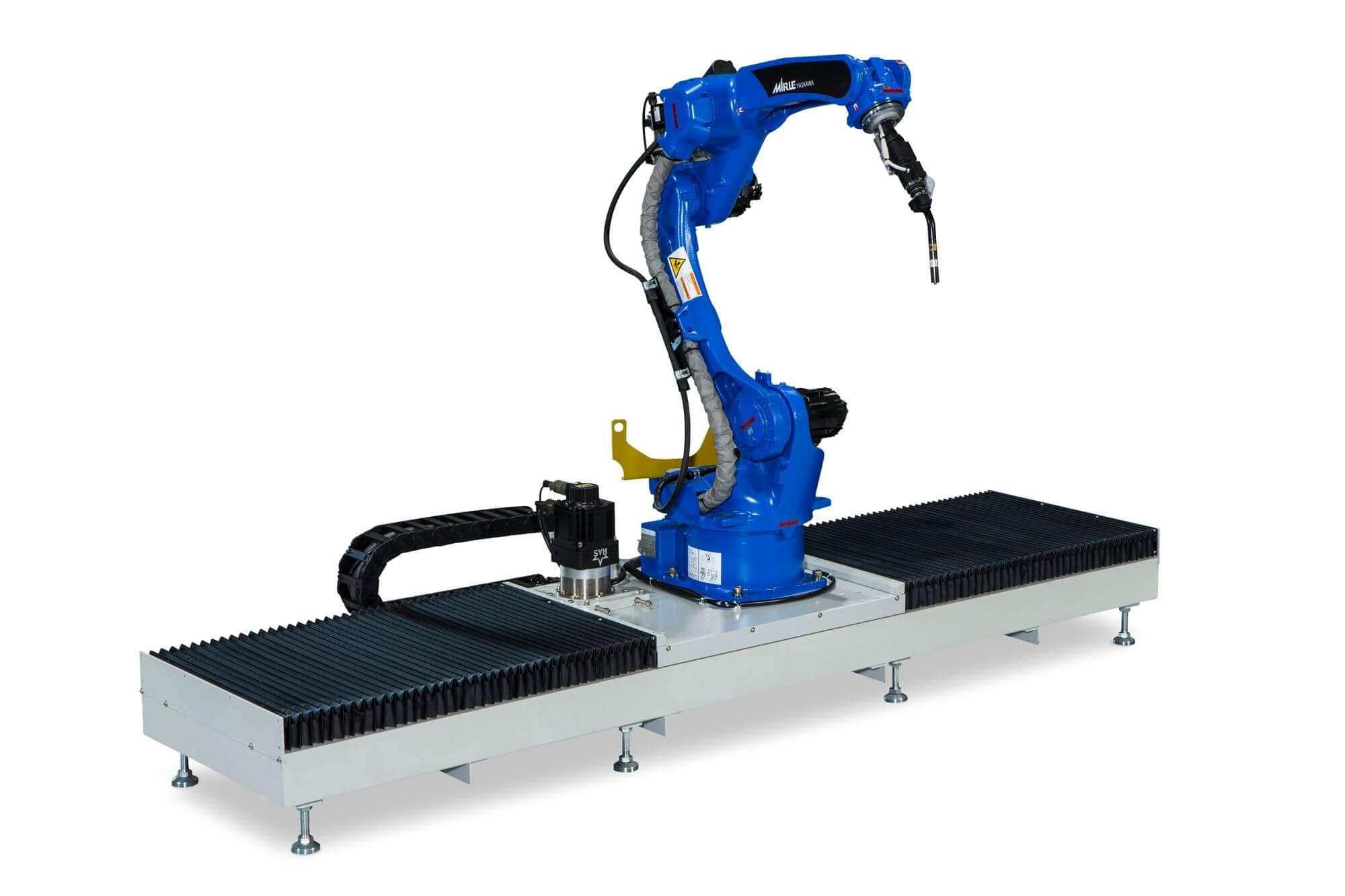

The Seventh-Axis Linear Module(Steel)  　　 　　The Seventh-Axis Linear Module 　　       　　The Seventh-Axis Linear Module(Aluminum Extrusion)

Palletizing System with Robotic Arm

Palletizing System with Robotic Arm usually joints between Solutions for Boxes and Pallets ,performing dismantling/palletizing purposes with grip/vacuum mechanism.
1.Compatible with the seventh-axis linear module to increase the operation range.
2.Increase capacity by integrating different automatic processes.

Palletizing/Conveying System with Robotic Arm

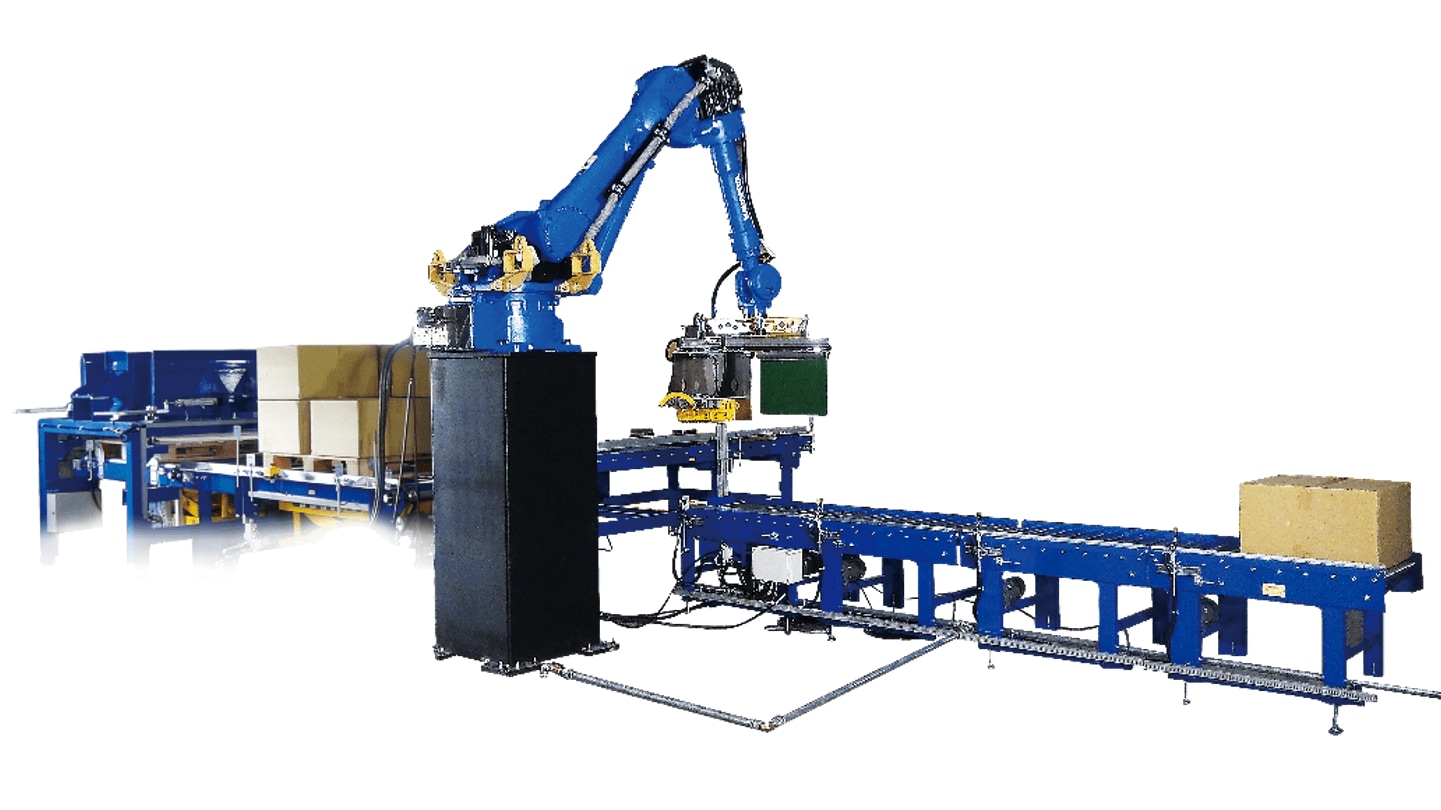

Palletizing/Conveying System with Robotic Arm 　　　　　　　　　　　　　　Palletizing/Conveying System with Robotic Arm

Material Box Filling System with Robotic Arm

The Material Box Filling System with Robotic Arm can fulfill the needs of filling or packing.
1.Compatible with the seventh-axis linear module to increase the operation range.
2.Increase capacity by integrating different automatic processes.

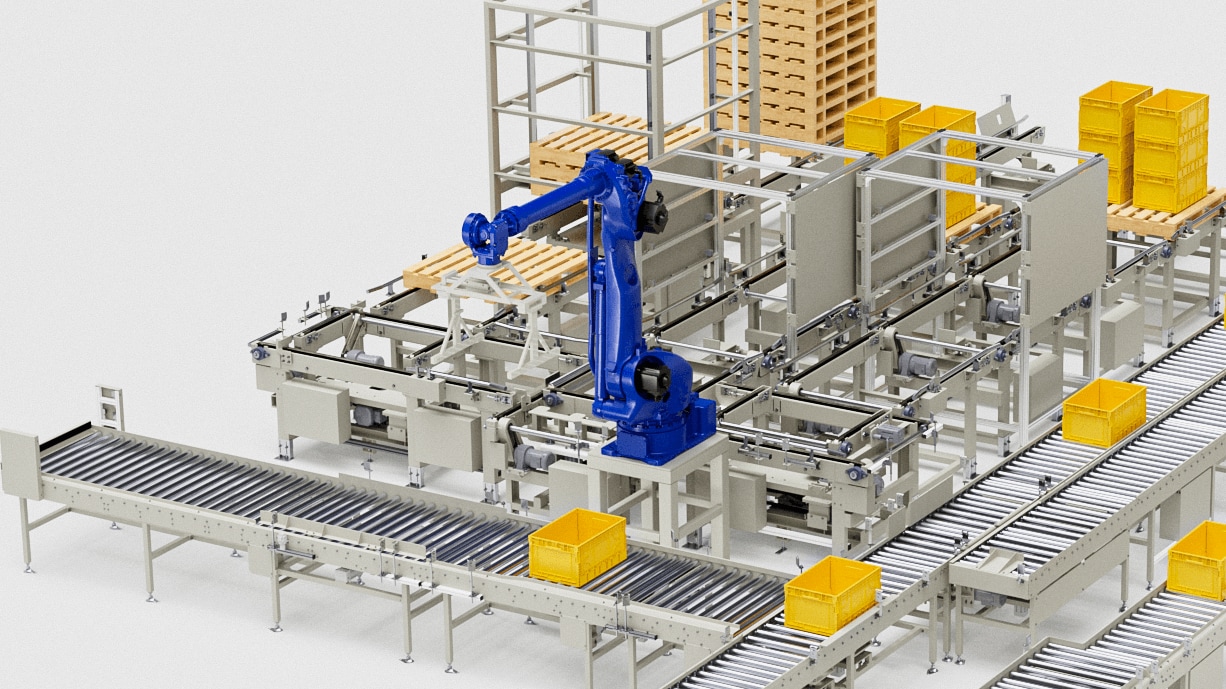

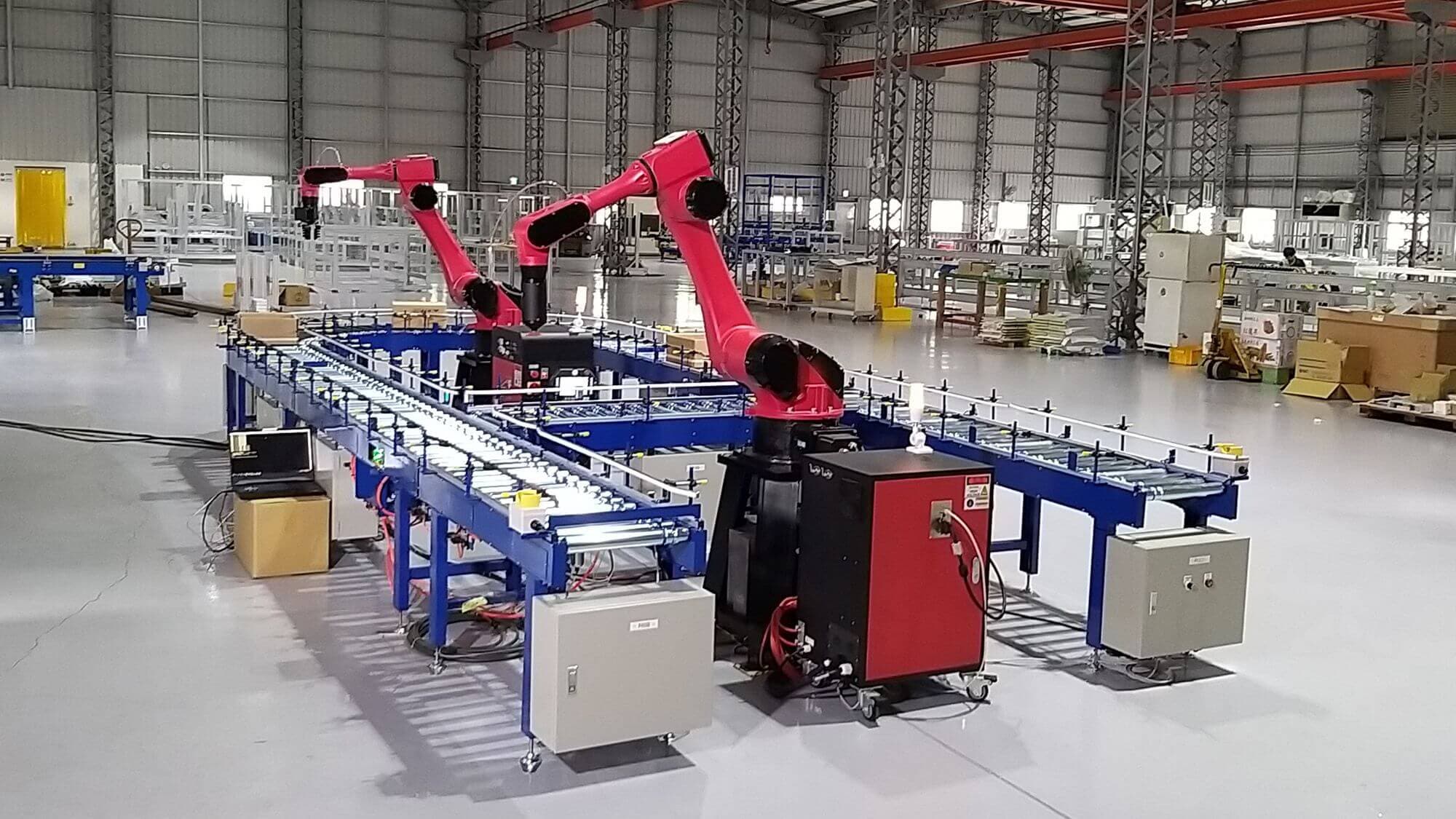

Material Box Filling System with Robotic Arm 　　　　　　　　　　　　　　　Material Box Filling System with Robotic Arm
